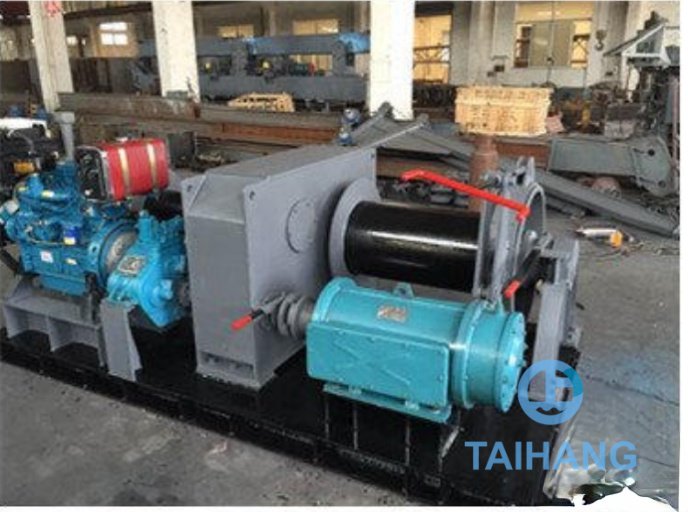

Ship Electric And Diesel Engine Double Power Driven Marine Winch

Driven: Electric And Diesel Engine Double Power Driven Marine Winch
Application: 80KN
Norminal Speed: 9m/min
Warranty: 1 Year
Certificate: CCS, BV, ABS, DNV, KR, NK, RINA, GL, LR

A marine winch is one of the marine equipment used during mooring operations to hold a boat in place at a pier or similar fixture.

The marine winch can be driven by electric and hydraulic and diesel engine . As you can see our below Electric And Diesel Engine Double Power Driven Marine Winch .It can be driven by electric or diesel engine. That means it is the double power driven winch. Deyuan marine can design the ship marine winch according to your specific requirement.

All our boat marine winches are approved by CCS,ABS,DNV,BV,NK,RINA,BKI. Deyuan marine can offer you the marine winch with hight quality and best price. Pls feel free to contact deyuan marine sales team for more details.

Electric And Diesel Engine Double Power Driven Marine Winch Technical parameter:

Drum 1

Working load: 28.7KN

Holding load: 175KN

Rated speed: 9m/min

Cable dia Φ19mm

Rope capacity: 500m

Drum 2

Working load: 80KN

Holding load: 240KN

Rated speed: 9m/min

Cable dia: Φ28mm

Rope capacity: 100m

Engine:

1.Brand: Shangdong Weifang

2.Model: 495D10

3. Power: 26.5KW

Motor:

1.Brand: Shangdong Dezhou

2. Type: Speed control motor

3. Model:JZ2-H42-4/16

4. Power: 18/5kw IP56

5. Voltage: 380V 50Hz

IP rating for the motor and starter:IP56

Please feel free to contact us for more details.
